In the field of modern automation and industrial engineering, torque motors have become one of the key components in motion systems. Unlike traditional motors that focus on speed, torque motors are designed to produce the highest possible torque, making them ideal for applications that require strong starting force, heavy load handling, or precise holding at low speeds.
Today, with the rapid growth of manufacturing, robotics, and electric vehicles, the demand for motors that offer high torque, fast response, and energy efficiency is increasing. Torque motors provide a strong solution to these demanding needs. However, the wide range of torque motor types with different names and features can make it difficult to choose the right one for each specific application.
This article will help you understand what a torque motor is, the different types, and compare the three most popular high torque motor types today: High Torque DC Motors, High Torque Servo Motors, and High Torque Electric Motors. We’ll also highlight their advantages and disadvantages, giving you a complete picture before making a decision.

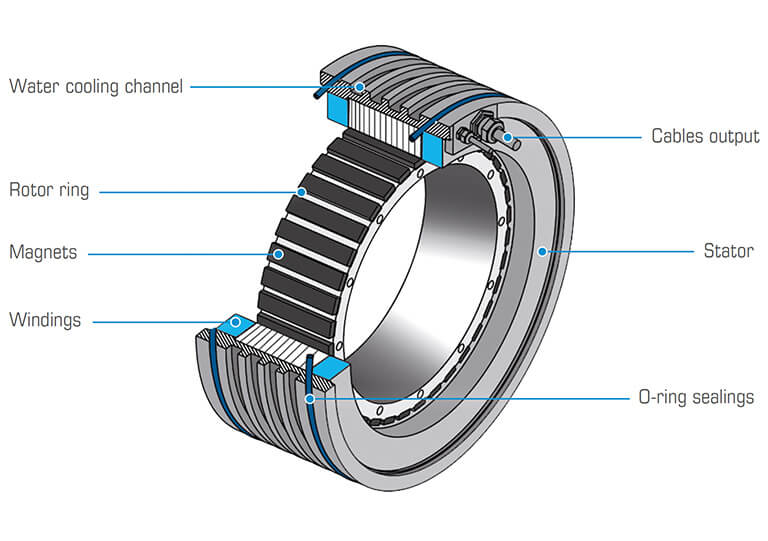

1. What is a Torque Motor?
A torque motor is a type of electric motor designed to produce high torque even at low speeds or while stationary. Unlike speed-oriented motors, torque motors are optimized to deliver strong rotational force right from startup.
Common characteristics:
- High torque output at startup
- Capable of maintaining high torque at low speeds
- Used in systems requiring high rotational force: conveyors, robots, elevators, electric vehicles…
Pros and Cons of Different High Torque Motors
Motor Type
Advantages
Disadvantages
High Torque DC Motors
Simple structure – Low cost – Easy to control
Low positional control accuracy – No feedback for position
High Torque Servo Motors
High precision control – Encoder feedback – Fast response
Higher cost – Requires dedicated driver
High Torque Electric Motors
General use – Flexible power options – Supports AC/DC
Broad category, hard to specify without clear needs – May require system design skills

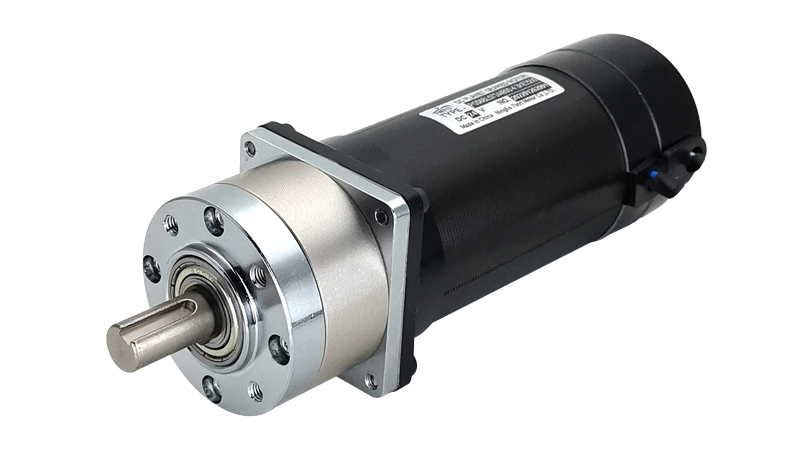

2. High Torque DC Motors
A High Torque DC Motor is a direct current (DC) motor designed to produce high torque, suitable for systems that need to move heavy loads or operate at low speeds.
Features:
- Runs on DC power (battery, power supply, DC converter)
- Torque and power vary with voltage and current
- Easy to control via PWM or basic drivers
Applications:
- Model cars, simple robotics
- Automatic doors, rotating arms, mixers

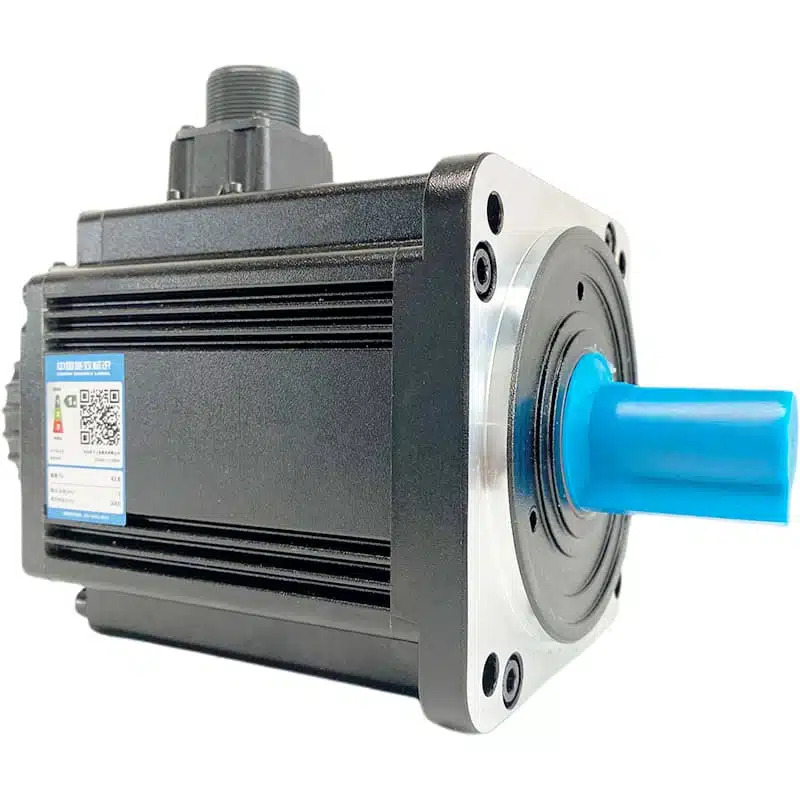

3. High Torque Servo Motors
A servo motor (with encoder and driver) designed to deliver high torque combined with accurate position/motion control.
Features:
- Includes encoder to measure position and speed
- Closed-loop control → fast and accurate feedback
- Maintains high torque even when holding position
Applications:
- Robotic arms, CNC machines
- High-precision medical equipment
- Automated production lines

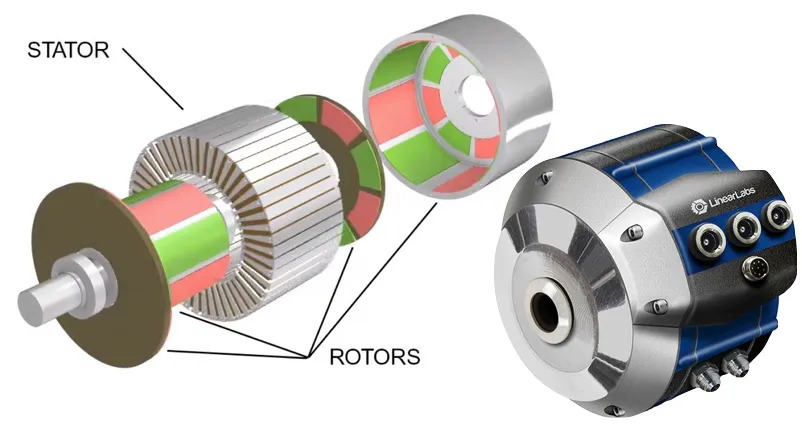

4. High Torque Electric Motors
A general term for electric motors (AC or DC) capable of producing high torque, including both DC and servo motor types.
Features:
- Includes many types: BLDC, AC Induction, PMSM…
- Highly flexible and can be integrated with gear systems
- Easy to use with heavy loads or fixed systems
Applications:
- Electric vehicles, conveyors, industrial machinery
- Pressing, pulling, or high-load systems
5. Quick Comparison of High Torque Motor Types
Criteria
High Torque DC Motors
High Torque Servo Motors
High Torque Electric Motors
Power Supply
DC
DC or AC (with driver)
DC or AC (general)
Position Control
No
Yes (encoder, closed-loop)
Depends on type
Accuracy
Moderate
Very High
Varies by model
Cost
Low to Medium
High (due to driver & encoder)
Flexible based on power
Applications
Simple robotics, models
Industrial robots, CNC
EVs, presses, heavy conveyors
Conclusion
Torque motors are the heart of many modern drive systems. Depending on your requirements for control, accuracy, load handling, and cost, you can choose the most suitable high torque motor:
- Choose High Torque DC Motors: for simple, cost-effective solutions with medium load requirements
- Choose High Torque Servo Motors: for high precision, fast feedback, and reliable position holding
- Choose High Torque Electric Motors: for versatile applications with varied power sources and heavy-duty needs
Understanding torque motors properly will help you design efficient, durable, and cost-effective drive systems in the long term.
